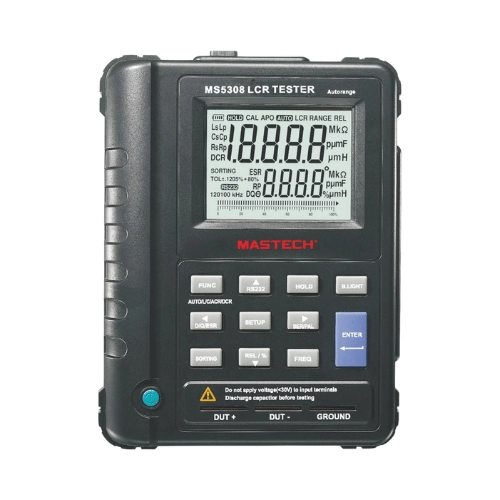

Mastech Professional LCR Meter Model MS5308

The MS5308 is a professional LCR meter offering extremely high measurement accuracy, making it suitable for high-precision and industrial applications. It is also worth noting that this product is manufactured under a German license. RS232 to USB adapter cable
Replaceable battery
LCD display showing measurement data in two sections (4-digit and 5-digit) with a real-time bar graph
Measures series and parallel inductance, parallel and series capacitance, Quality Factor (Q), and ESR
Automatic range selection (Auto Range)
Selectable parallel and series modes
High measurement accuracy
Automatic zero-point adjustment
Plastic housing with a built-in stand
RS232 interface for PC connection and USB adapter
Includes various probes for testing electronic components
PC connectivity via USB cable and dedicated software

Product Technical Specifications:
5 Inductance measurement ranges:
20µH – 200µH – 2mH – 20mH – 200mH
9 Capacitance measurement ranges:
200pF – 2000pF – 20nF – 200nF – 2µF – 20µF – 200µF – 2000µF – 20mF
8 Resistance measurement ranges:
200MΩ – 20MΩ – 2MΩ – 200kΩ – 20kΩ – 2kΩ – 200Ω – 20Ω
5 Component test frequency ranges:
100kHz – 10kHz – 1kHz – 120Hz – 100Hz

Measurement Capabilities:
Resistance
Inductance
Resistance: 0 ~ 200.00 MΩ
Inductance: 0 ~ 20.000 kH
Capacitance: 0 ~ 20.00 mF
Capacitance at various frequencies: 100Hz / 120Hz / 1kHz / 10kHz /100 kHz *****
